Autel MX Sensor

Autel MX-Sensor combines both 315MHz + 433MHz frequencies into one TPMS sensor with 98% vehicle coverage. The exclusive MX-Sensor patented PRESS release valve stem design, allows rubber and metal valve stems to freely interchange by hand, without requiring a tool for sensor head fitting. Built to match or exceed OEM sensors in frequency strength and durability, MX-Sensors are 100% ID clone-able with no relearn required and offer latest model vehicle coverage because they quickly update during installation with an Autel wireless programming tool.

Note: If you need to purchase sensors in large quantities, you can negotiate by contacting us.

TOP 4 Highlights

• 2-in-1 Dual Frequency - This tire pressure monitoring sensor (for TPMS) has been manufactured to combine both 315 MHz and 433 MHz applications in one sensor to greatly simplify users’ inventory management and lower the investment as well as sales loss. And it is built to perform like OE sensors in terms of signal, durability and functionality
• 98% Vehicle Coverage - Autel MX-Sensor 2 In 1 (315MHz + 433MHz) Screw-In OE-Level Programmable Sensor is smart and efficient,supporting up to 99% of the US and Canadian vehicles.The programmable universal sensors solution that covers over 98% of all OE sensors on the market will greatly simplify your inventory management and lower investment and sales loss
• Easy to Use - The maximum sensor signal strength allows sensors to be easily programmed wirelessly even when they have already been mounted to the wheel. Moreover, the unique screw release valve design makes the manual sensor replacement much easier
• Solid & Durable - It is equipped with an automotive-grade battery to meet severe weather conditions with long service life for over 5 years.Its high-precision air valve is able to prevent air leakage. The high-quality housing can withstand cold, hot and resistance corrosion

Basic Functions

Autel MX 1-Sensor Powerful Functions

Greatly reduce sensor inventory investment with the Autel MX-Sensor 1-Sensor solution providing 98% vehicle coverage. The easy to use exclusive PRESS release valve design, reduces tire and wheel service time to increase profits. With both rubber and metal accessory valves available, easily choose the preferred valve stem to minimize installation time and provide a quick and simple assembly.

98% Vehicle Coverage Limited 1-SKU Inventory

An easy to use and cost effective necessity for any shop performing TPMS repairs, ;Autel MX-Sensor 1-Sensor inventory solution with 98% vehicle coverage eliminates the need for distributors to carry the hundreds of sensors to fulfill shop orders. On the shop level, needing only 1-Sensor to service nearly every TPMS equipped vehicle means lower repair cost and higher install efficiency.

Superior Battery Reliability Lower Sensor Weight

With the highest quality materials and advanced TPMS technology, AUTEL 1-Sensor provides superior battery life and reliability, to match OE sensor battery performance. The 1-Sensor body weighs only 12g, making it significantly lighter than most sensors in the market, which ensures better sensor stability and performance.

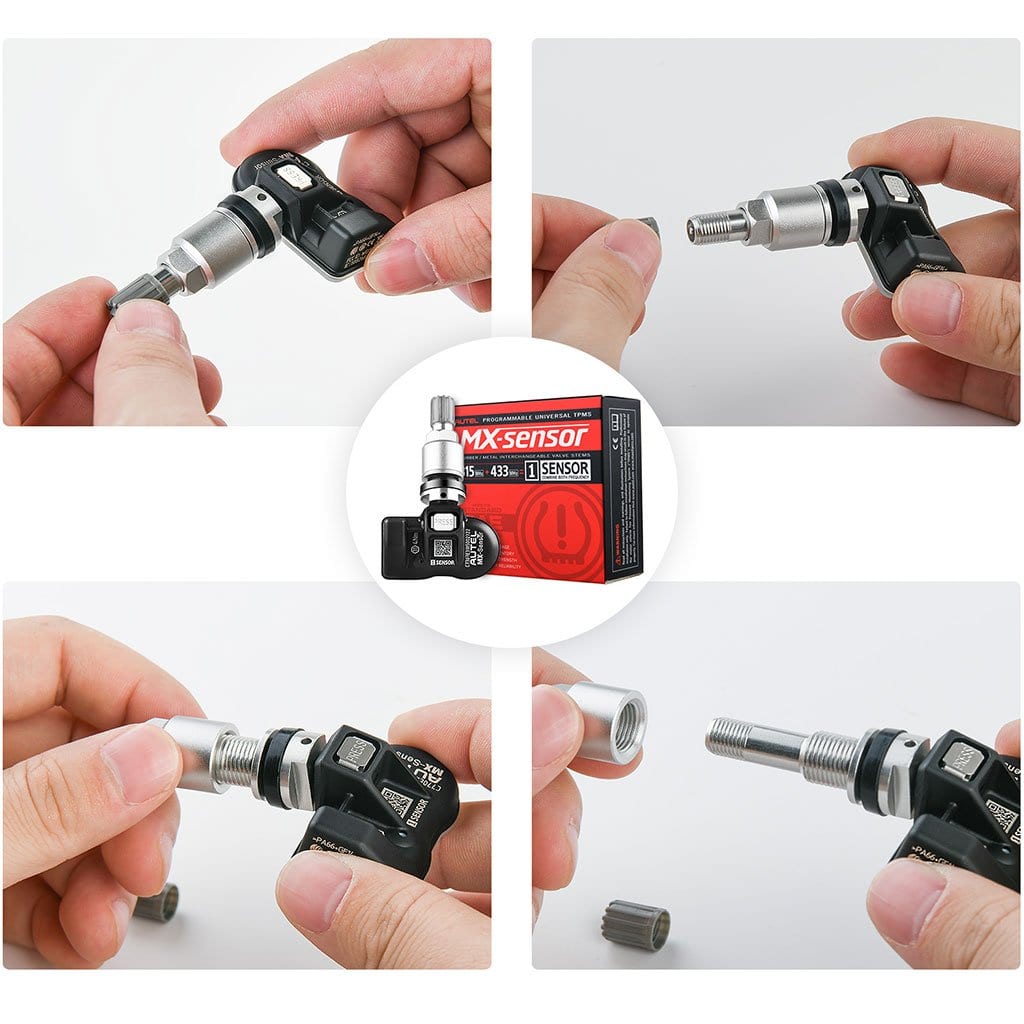

Exclusive Press Release Interchangeable Valve Stems

The patented press release valve design allows interchangeable rubber and metal valves to be easily replaced in the same sensor head by hand, with no valve fitting tool required. Simply click in and press out. Installing TPMS sensors has never been so easy.

Maximum Signal Strength Wireless Programming

The extraordinary sensor signal strength allows AUTEL 1-Sensor to be easily programmed wirelessly even when the sensors have already been mounted to the wheel. And with strong signal strength, now up to 16 sensors can be programmed in one session with AUTEL latest TPMS tools. AUTEL MX-Sensor is 100% clone-able. No relearn is required when the MX-Sensor is cloned with the original sensor ID and put in the same position.

Sae Tested Certified Strict Quality Control

Autel high-quality MX-Sensor is tested and certified to meet SAE industry standard J1205 / J1206 testing. AUTEL guarantees MX-Sensor are free from manufacturing defects for a period of 24 months or 24,000 miles, whichever option comes first. Each Autel MX-Sensor has a series number for assuring quality control. The series number is imprinted on the sensor or can be read with Autel TPMS tools. With the series number, Autel can track the sensor quality from our factory manufacturing to ensure only the highest quality parts are installed.

How to Install Autel MX-Sensor 1 Sensor?

1. Loose the tire: Remove the valve cap and core and deflate the tire.
2. Dismount the tire: Clamp the tire onto the tire changer, and adjust the valve at 1 o’clock relative to the tire separation head. Insert the tire tool and lift the tire bead onto the mounting head to discount the head.
3. Dismount the sensor: With a screwdriver remove the fastening screw and sensor from the Valve stem, then loosen the nut and remove the valve.
4. Mount sensor and valve: Slide the valve stem through the valve hole of the rim. Tighten the screw-nut with 4.0 Nm with the help of the positioning pin. Assemble the sensor body against the rim and tighten the screw.
5. Mount the tire: Place the tire on the rim, making sure that the valve faces the separation head at an angle of 180 degrees. Mount the tire over the rim.

Autel MX-Sensor Introduction

Autel MX-Sensor 1 Sensor Specifications
